P3 2CO Relays DIN Sockets

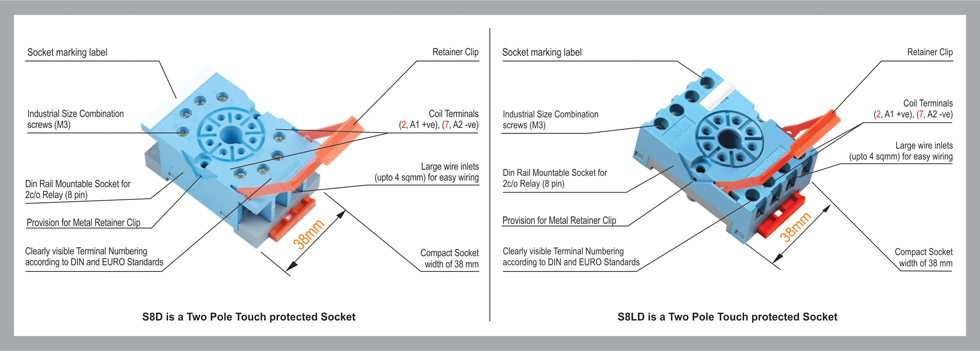

Series S8D | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 2 Change over |
Width | : | 38 mm |
download pdf
Series S8D-YA | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 1 NO Double Break & 2 NO Contacts |
Width | : | 38 mm |
download pdf
Series S8D-X | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 1 NO + NC Contacts |
Width | : | 38 mm |
download pdf
Series S8LD | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 2 Change over |
Width | : | 38 mm |
download pdf
Series S8LD-YA | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 1 NO Double Break & 2 NO Contacts |
Width | : | 38 mm |
download pdf
Series S8LD-X | ||
---|---|---|
Mounting Style | : | Din Rail Mountable |
Contact Form | : | 1 NO + 1NC Contacts |
Width | : | 38 mm |
download pdf
ACCESSORIES
Series S8LD-B1 | ||
---|---|---|
Type | : | Bridges |
: | 1 Way for coil terminal | |
Suitable Socket | : | S8LD, S8LD-YA, S8LD-X |
download pdf
Series C Terminal | ||
---|---|---|
Type | : | Fork / C Terminals |
: | Wire Connection | |
Suitable Socket | : | S8LD, S8LD-YA, S8LD-X |
download pdf
Series PDR-7.5 | ||
---|---|---|
Type | : | Din Rails |
: | 7.5 mm depth | |
Suitable Socket | : | All types of DIN Rail Sockets |
download pdf
Series PDR-15 | ||
---|---|---|
Type | : | Din Rails |
: | 15 mm depth | |
Suitable Socket | : | All types of DIN Rail Sockets |
download pdf
