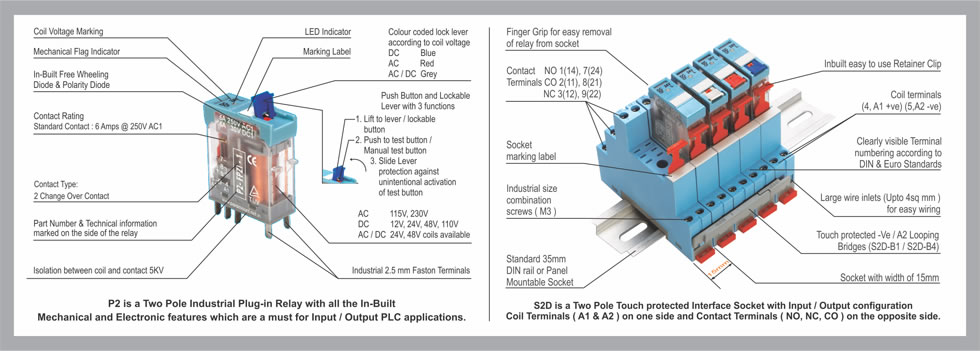

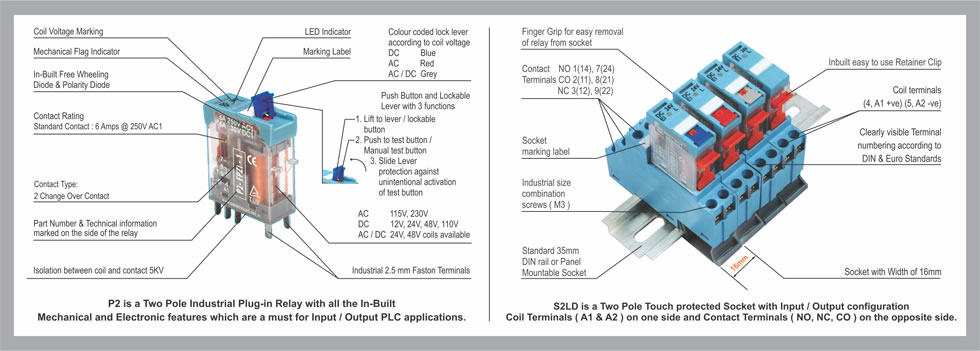

| Series P2 | Industrial Plug In Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change over |
| Contact Rating | : | 6 Amps @ 250VAC 1 |
| : | 6 Amps @ 30VDC 1 |
download pdf

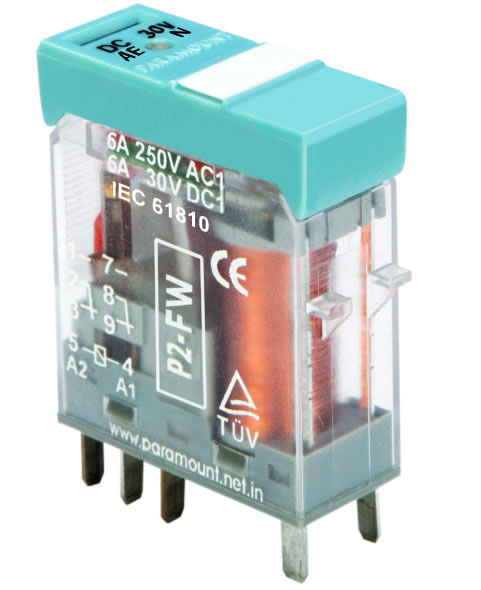

| Series P2-FW (5KV) | Industrial Plug In Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change over Contact |
| Contact Rating | : | 6 Amps @ 250VAC 1 |
| : | 6 Amps @ 30VDC 1 |
download pdf

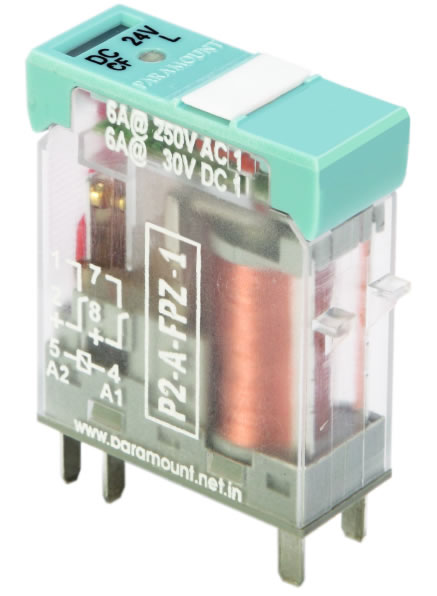

| Series P2-A | Industrial Plug In Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO - Normally Open contact |
| Contact Rating | : | 6 Amps @ 250VAC 1 |
| : | 6 Amps @ 30VDC 1 |
download pdf
| Series P2-M | DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change Over Contact |
| Contact Rating | : | 6.00 Amps @ 250VAC 1 / 30VDC 1 |
| : | 1.25 Amps @ 220VDC 1 | |
| : | 0.30 Amps @ 220VDC 13 |
download pdf

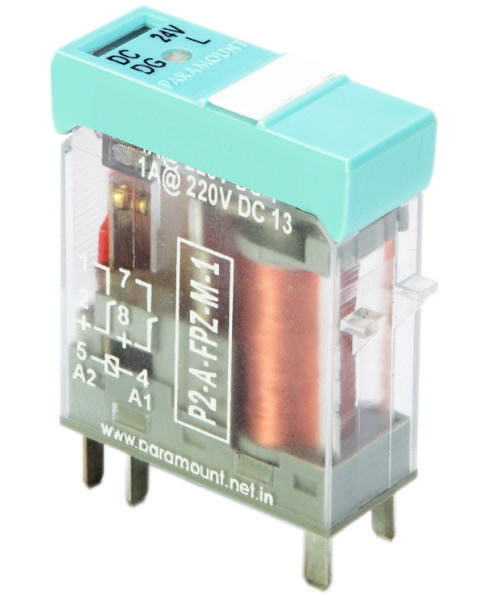

| Series P2-AM | DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO - Normally Open Contact |
| Contact Rating | : | 6 Amps @ 250VAC 1 / 30VDC 1 |
| : | 4 Amps @ 220VDC 1 | |
| : | 1 Amps @ 220VDC 13 |
download pdf
| Series P2-A-FW-M (5KV) | DC Switching Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO - Normally Open Contact |
| Contact Rating | : | 6 Amps @ 250VAC 1 |
| : | 6 Amps @ 30VDC 1 | |
| : | 5 Amps @ 220VDC 13 |
download pdf

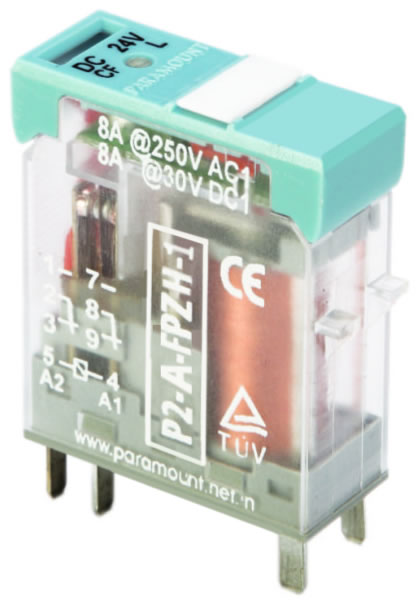

| Series P2-H | Heavy Rating Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 Change Over Contact |
| Contact Rating | : | 8.0 Amps @ 250VAC 1 / 30VDC 1 |
| : | 0.5 Amps @ 110VDC 1 | |
| : | 0.2 Amps @ 220VDC 1 |
download pdf
| Series P2-AH | Heavy Rating Relays | |
|---|---|---|
| Mounting Style | : | Plug In Type |
| Contact Form | : | 2 NO Normally Open Contact |
| Contact Rating | : | 8.0 Amps @ 250VAC 1 / 30VDC 1 |
| : | 1.0 Amps @ 110VDC 1 | |
| : | 0.5 Amps @ 220VDC 1 |
download pdf
